- Place of Origin:
Guangdong, China (Mainland)
- Brand Name:
led pixel controller
- Max. Load Power:
5V<90W, 12V<216W, 24V <432W
- Key word:
SD Card Full color controller
- Product Name:
T-1000S RGB Controller led Pixels T1000S Controller
- working wattage:
- Output Voltage:
- Input Voltage:
- Working Temperature:
- Supply Ability:
- 1000 Piece/Pieces per Quarter
- Packaging Details
- accept client requirment

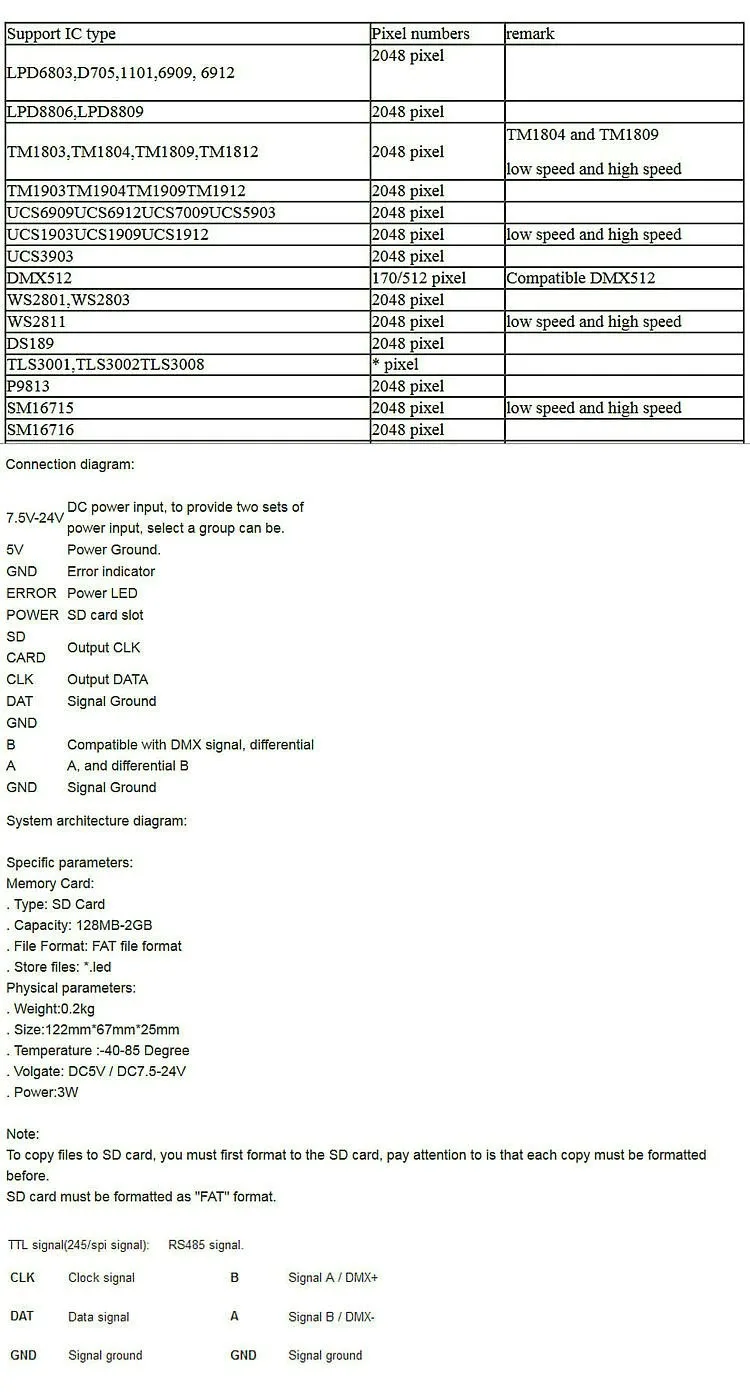

DC5~24V T-1000S RGB Controller WS2801 WS2811 WS2812B LPD6803 led Pixels T1000S Controller with SD Card
Working temperature :-30-85degree celsius
Working voltage:DC5V / DC7.5-24V
Signal port:3pin connect port
1.32-65536 Gray,Support software Gamma correction.
2.Support point, line, surface, rules and special-shaped handle.
3.Single-port output,can support 2048 pixels.
4.Multiple controllers can be cascaded together and work synchronous,
play back content stored in the SD card.
5.Compatible with single line or double line chips.
When T-1000s control more than 512 pixels the frame rate will slow down automatically.
T1000S Controller* 1piece
SD Card* 1piece
2. Support the rules and special-shaped handle.
3. Controller, a port output, may bring 1024/2048 light.
4. Off-line control, play back content stored in the SD card
5. T-1000C store a maximum of 16 documents
Q1. how the controller connect power supply ?
Led light not only connect with signal line , but also connect with power supply . . Led light red line connect with power supply V+ , yellow line connect with power supply V-
Q2. how to connect the power supply and led light ?
Connect way of power supply : Power supply “L””N” respectively connect with 220v firing line and null line . Led light power line is connect to the power supply V+ V- terminal , on average and respectively .
Q3. why the led light effect can’t Synchronize ?
A: usually the signal can’t pass , the front light normal running , the end of the led light not correct effect . then test the led light not have correct effect . check which led light have problem , then change that .
Q4. why the led light flashing unnormally ?
A: check the power supply whether is enough ?
Q5.why the controller error light is blinking ?
A: 1: the SD card no program , copy the program into SD card again , remember first format the SD card .
2:the connect way whether is correct ?
More question about controller , please contact me no hesitate .
